Product Details:
|
Applicable Industries: | Building Material Shops, Machinery Repair Shops, Ma | Product Name: | Bearing65*130*37mm Tapered Roller Bearing T7FC065 |
---|---|---|---|
Feature: | Stable Performance:low Voice | Keywords: | Slewing Bearing Price/slewing Ring/swing Circle/slew Ge |
Material: | Chrome Steel | Appliion: | Construction Machinery |
Warranty: | 6 Months | Size: | 65x130x37mm |
Lubriing: | Oil Or Grease | ||
Highlight: | Tapered Excavator Slewing Ring,T7FC065,Tapered Turntable Slewing Bearing |
T7FC065/QCL7C Bearing 65*130*37mm Tapered Roller Bearing T7FC065
Product Parameters
NO.
|
ITEM
|
DATA
|
1
|
Bearing Number
|
T7FC065 bearing
|
2
|
Inner diameter
|
65mm
|
3
|
Outer diameter
|
130mm
|
4
|
Width
|
33.5mm
|
5
|
Weight
|
2.14kg
|
6
|
Dynamic load rating
|
211KN
|
7
|
Static load rating
|
33.5KN
|
8
|
Reference speed
|
5700 r/min
|
9
|
Limiting speed
|
4450 r/min
|
Product Type :
Metric Single Row Tapered Roller Bearings
Structure :
Tapered roller bearing contains four interdependent components: the cone (inner ring), the cup (outer ring), tapered rollers (rolling elements) and the cage (roller retainer).
Expert craftsmanship, well-equipped production facilities and an ongoing investment in technology ensure our products are synonymous with quality and reliability. Our tapered roller bearings stand up to extreme situations, including high-corrosive, high-temperature or low-lubriion environments .
Product feature :

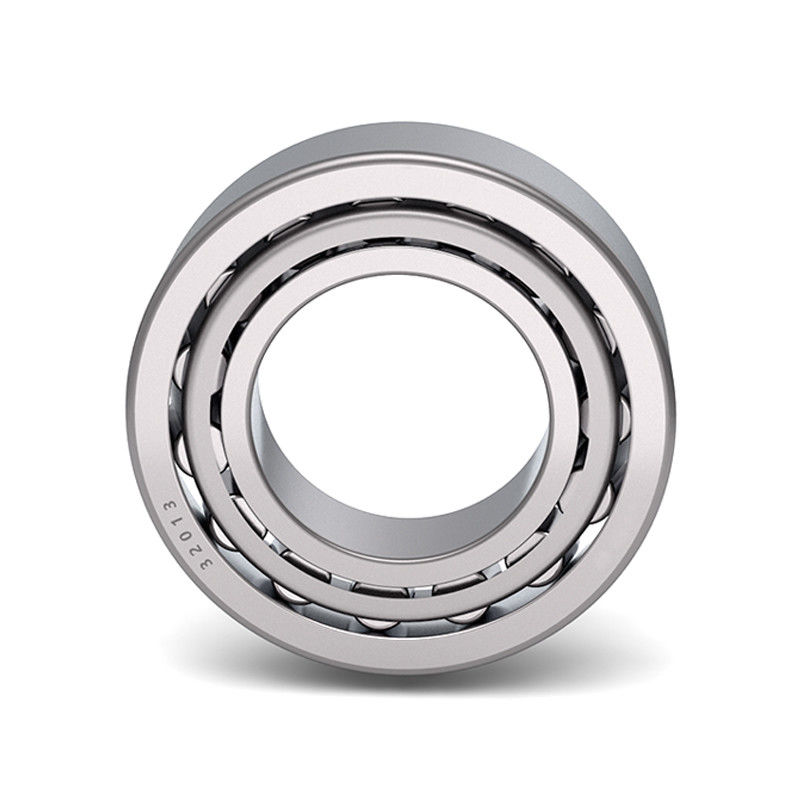

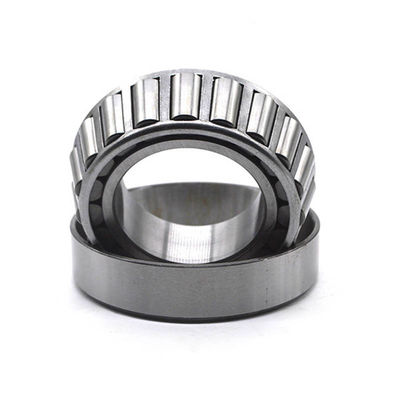

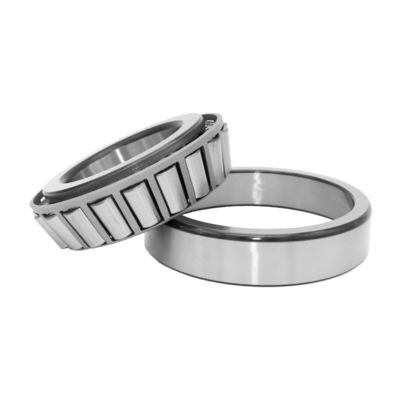

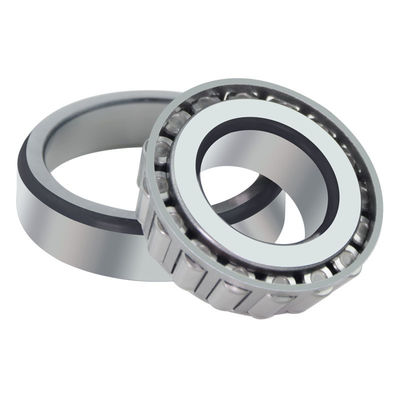

Images :
Specifiions and Dimensions:
Bearing Model : | T7FC 065 |
Design Unit : | Metric |
d - Bore : | 65 mm |
D - Cup Outer Diameter : | 130 mm |
B - Cone Width : | 33.5 mm |
C - Cup Width : | 26 mm |
T - Bearing Width : | 37 mm |
Bearing Weight : | 2.2 kg |
Cage Material : | Stamped Steel |
Chart :
Cross Roller Bearings generally consists of a pair of ferrules, a cage, a group of steel balls. Its structure is simple, easy to use, so it is the most common production, the most widely used type of bearings. Cross Roller Bearings utilize an uninterrupted raceway that makes them optimal for radial loads .This design permits precision tolerance, even at high-speed operation.This type of bearing is mainly used to bear the radial load, but also can withstand a certain amount of axial load in either direction. When increase the radial clearance of the bearing in a certain range, they have the nature of angular contact ball bearings and can withstand greater axial load. Our extended product line includes a complete offering of open, shields, seals and snap ring combinations.
